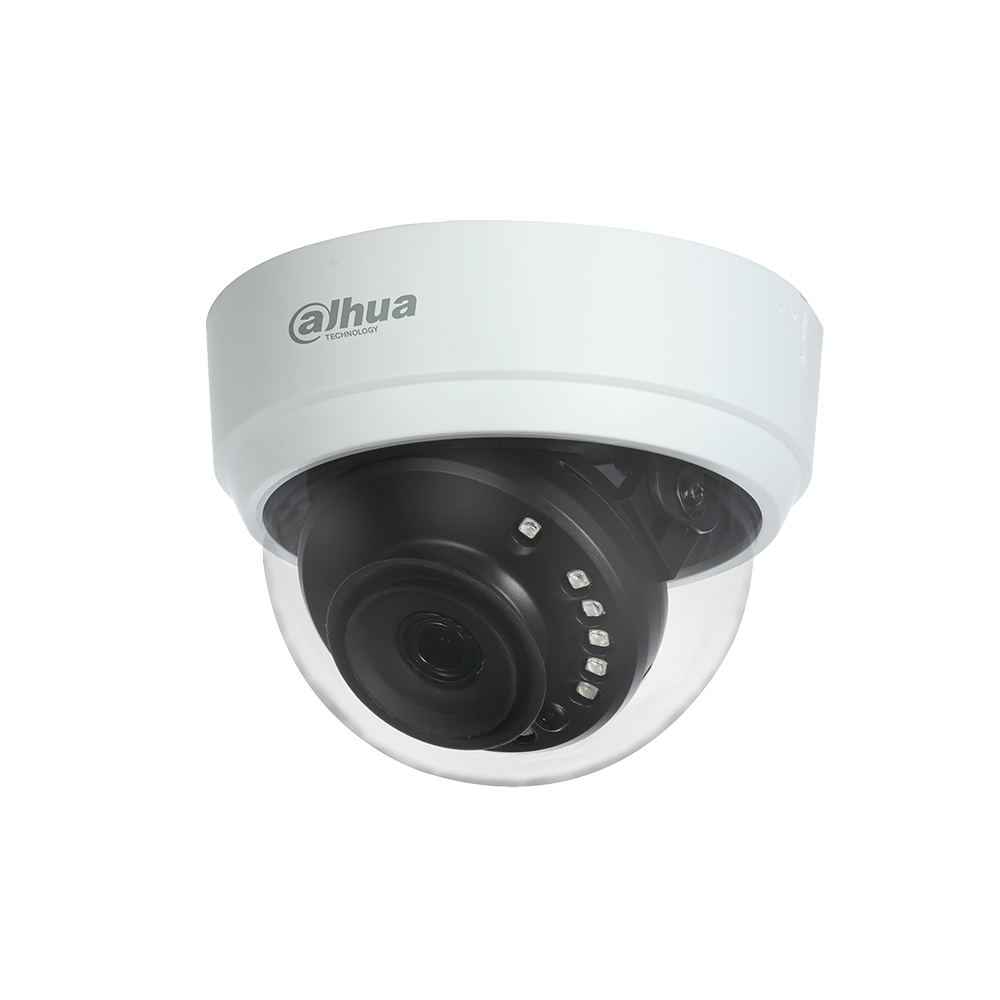

CAMERA CVI HDPW1200RP-S3
- Camera hỗ trợ HDCVI/HDTVI/AHD/ANALOG, tích hợp OSD
- Độ phân giải 2 Megapixel cảm biến CMOS kích thước 1/2.7", 30fps@1080P
- Độ nhạy sáng tối thiểu 0.01Lux@F1.85(0Lux IR LED on),
- Tầm xa hồng ngoại 20m với công nghệ hồng ngoại thông minh
- Chế độ ngày đêm(ICR)
- Tự động cân bằng trắng (AWB), Tự động bù sáng (AGC),
- Chống ngược sáng(BLC), Chống nhiễu (2D-DNR)
- Thiết kế mới nhỏ gọn, thẩm mỹ, dễ dàng lắp đặt
- Ống kính cố định 3.6mm, vỏ plastic
Danh mục : CAMERA DAHUA CAMERA CVI
| Camera | |||
| Image Sensor | 1/2.7″ CMOS | ||
| Effective Pixels | 1920(H)×1080(V), 2MP | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s |
||
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on | ||
| S/N Ratio | More than 65dB | ||
| IR Distance | Up to 20m (66feet) | ||
| IR On/Off Control | Auto / Manual | ||
| IR LEDs | 12 | ||
| Lens | |||
| Lens Type | Fixed lens / Fixed iris | ||
| Mount Type | Board-in | ||
| Focal Length | 3.6mm (2.8mm Optional) | ||
| Max Aperture | F1.85 | ||
| Angle of View | H: 89.9° (103°) | ||
| Focus Control | N/A | ||
| Close Focus Distance | 900mm(600mm)
35.43” (23.6″) |
||
| DORI Distance | |||
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |||
| DORI
Definition |
Distance | ||
| Detect | 25px/m
(8px/ft) |
2.8mm: 40m(131ft)
3.6mm: 53m(175ft) |
|
| Observe | 63px/m
(19px/ft) |
2.8mm: 16m(52ft)
3.6mm: 21m(70ft) |
|
| Recognize | 125px/m
(38px/ft) |
2.8mm: 8m(26ft)
3.6mm: 11m(35ft) |
|
| Identify | 250ppm
(76px/ft) |
2.8mm: 4m(14ft)
3.6mm: 5m(17ft) |
|
| Pan / Tilt / Rotation | |||
| Pan/Tilt/Rotation | Pan: 0° ~ 355°
Tilt: 0° ~ 70° Rotation: 0° ~ 355° |
||
| Video | |||
| Resolution | 1080P (1920×1080) | ||
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P | ||
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) | ||
| Day/Night | Auto (ICR) / Manual | ||
| OSD Menu | Multi-language | ||
| BLC Mode | BLC / HLC / DWDR | ||
| WDR | DWDR | ||
| Gain Control | AGC | ||
| Noise Reduction | 2D | ||
| White Balance | Auto / Manual | ||
| Smart IR | Auto / Manual | ||
| Certifications | |||
| Certifications | CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
||
| Interface | |||
| Audio Interface | N/A | ||
| Eelectrical | |||
| Power Supply | 12V DC ±25% | ||
| Power Consumption | Max 2.9W (12V DC, IR on) | ||
| Environmental | |||
| Operating Conditions | -40°C ~ +45°C (-40°F ~ +104°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F) |
||
| Storage Conditions | -40°C ~ +45°C (-40°F ~ +104°F) / Less than 90% RH | ||
| Ingress Protection & Vandal Resistance | N/A | ||
| Construction | |||
| Casing | Plastic | ||
| Dimensions | Φ100mm×74.3mm(Φ3.9″×2.9″) | ||
| Net Weight | 0.13kg (0.29lb) | ||
| Gross Weight | 0.22kg (0.49lb) | ||
