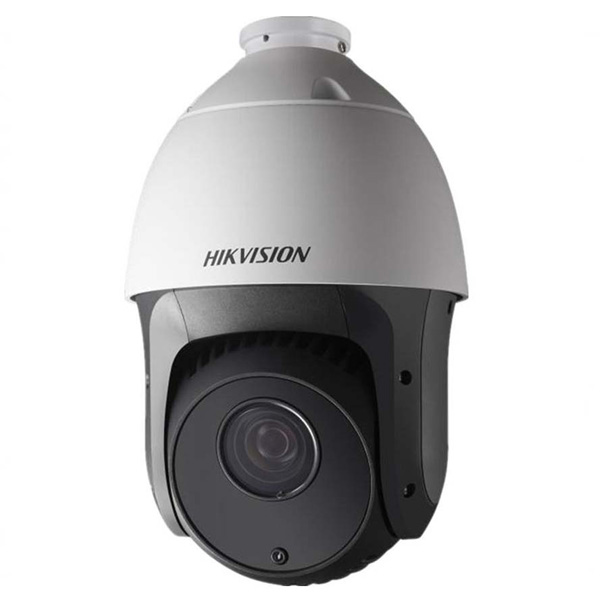

CAMERA TVI 2AE4215TI-D
- Camera speed dome 4 trong 1 xoay 360° TVI 2MP zoom 25x
- 1/2.8" HD progressive scan CMOS
- Độ phân giải 1920 × 1080
- 25× zoom quang, 16× zoom KTS (4225TI-D)
- 15× zoom quang, 16× zoom KTS (4215TI-D)
- Hình ảnh ban đêm rõ nét với độ nhạy sáng:
- Color: 0.005 Lux @(F1.6, AGC ON)
- B/W: 0.001 Lux @(F1.6, AGC ON)
- Hồng ngoại lên đến 100 m
- Chống rung lắc hình ảnh
- Chống ngược sáng thực WDR 120dB
- Hỗ trợ chuyển đổi để phù hợp với đầu ghi TVI/AHD/CVI/CVBS
- Chống sét 4,000V
Danh mục : CAMERA HIK VISION CAMERA TVI
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8" Progressive Scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
|
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| WDR: | ≥ 120 dB | |
| Anti-shake: | On / Off | |
| Shutter Time: | PAL: 1-1/10,000s NTSC: 1-1/10,000s |
|
| Day& Night: | ICR | |
| Digital Zoom: | 16x | |
| Privacy Masking: | 8 privacy masks programmable | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 5 mm to 75 mm, 15× Optical | |
| Zoom Speed: | Approx. 2.4 s (optical, wide to tele) | |
| Angle of View: | 53.8° to 4.0° (wide-tele) | |
| Minimum Working Distance: | 10-1500mm (Wide-Tele) | |
| Aperture Range: | F 1.6 to F 3.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s |
|
| Tilt Range: | -15°-90° (Auto Flip ) | |
| Tilt Speed: | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
|
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 256 | |
| Patrol: | 10 patrols, up to 32 presets per patrol | |
| Pattern: | 5 patterns, with the total recording time no less than 10 minutes | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None | |
| PTZ Position Display: | ON/OFF | |
| Infrared | ||
|---|---|---|
| IR irradiation distance: | 100m | |
| IR irradiation angle: | Adjustable by zoom | |
| Input & Output | ||
|---|---|---|
| Video Output: | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) | |
| UTC function: | UTC protocol (or HIKVISION-C protocol in previous DVR) | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Menu Language: | English | |
| Power Supply: | 12V DC | |
| Power Consumption: | Max.20 W (IR:7 W) | |
| Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F) 90% or less |
|
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
| Dimensions: | Ø 164.5 mm × 295 mm (Ø 6.47" × 11.61") | |
| Weight (approx.): | 2Kg (4.41Ib.) | |
| Mount Option: | Various mounting modes optional | |
