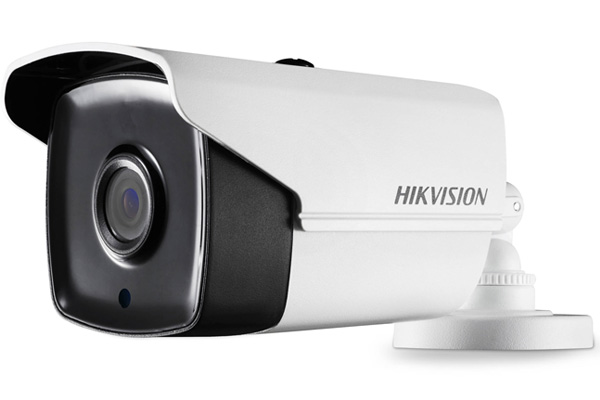

CAMERA TVI 2CE16C0T-IT3

Camera

Image Sensor:

1MP CMOS Image Sensor

Signal System:

PAL/NTSC

Effective Pixels:

1296(H)x732(V)

Min. Illumination:

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time:

1/25(1/30) s to 1/50,000 s

Lens Mount:

M12

Adjustment Range:

Pan: 0°-360°; Tilt:0°-180°; Rotation: 0°-360°

Day& Night:

IR cut filter with auto switch

Video Frame Rate:

720p@25fps/720p@30fps

HD Video Output:

1 Analog HD output

Synchronization:

Internal Synchronization

S/N Ratio:

More than 62 dB

General

Operating Conditions:

-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply:

12 VDC±15%

Weather Proof:

IP66

IR Range:

Up to 80m

Dimension:

86.22×82.05×220.13mm(3.39”×3.23”×8.67”)

Weight:

700 g
