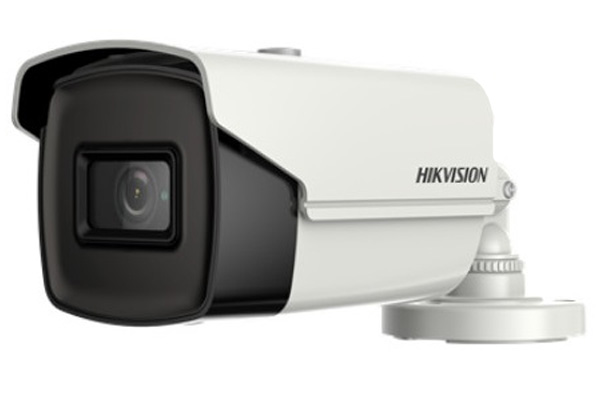

CAMERA TVI 2CE16U1T-IT5F
- Camera 4 trong 1 (TVI/AHD/CVI/CVBS) 8MP
- 8.29 MP high performance CMOS
- Độ phân giải 3840 × 2160
- 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
- Hồng ngoại Smart EXIR 2.0
- IT3: lên đến 60m
- IT5: lên đến 80m
- IP67
Danh mục : CAMERA HIK VISION CAMERA TVI
| Camera | ||
|---|---|---|
| Image Sensor: | 8.29 MP high performance CMOS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 3840 (H) × 2160 (V) | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s | |
| Lens: | 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens | |
| Lens Mount: | M16 | |
| Adjustment Range: | Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: 8MP@12.5fps, 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N | |
| Synchronization: | Internal Synchronization | |
| Lens | ||
|---|---|---|
| Horizontal Field of View: | 79° (3.6 mm), 50.8° (6 mm), 37.73°(8 mm), 23.96°(12 mm) | |
| Menu | ||
|---|---|---|
| D/N Mode: | Auto/Color/BW (Black and White) | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English | |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR | |
| Interface | ||
|---|---|---|
| Video Out: | 1 HD analog output | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. | |
| Power Consumption: | Max. 5.9 W | |
| IR Range: | Up to 80m | |
| Communication : | Up the coax Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) |
|
| Dimension: | 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" ) | |
| Weight: | Approx. 435 g (0.96 lb.) | |
