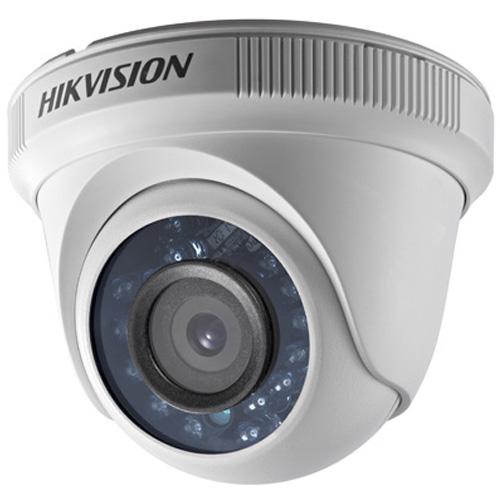

CAMERA TVI 2CE56D0T-IR

Camera

Image Sensor:

2MP CMOS Image Sensor

Signal System:

PAL/NTSC

Effective Pixels:

1920(H)*1080(V)

Min. Illumination:

0.01 Lux @ (F1.2,AGC ON),0 Lux with IR

Shutter Time:

1/25(1/30) s to 1/50,000 s

Lens:

2.8mm, 3.6mm, 6mm optional

Lens Mount:

M12

Adjustment Range:

Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

Day& Night:

IR cut filter with auto switch

Video Frame Rate:

1080p@25fps/1080p@30fps

HD Video Output:

1 Analog HD output

Synchronization:

Internal Synchronization

S/N Ratio:

More than 62 dB

General

Operating Conditions:

-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply:

12 VDC±15%

Power Consumption:

Max. 4W

Weather Proof:

IP66

IR Range:

Up to 20m

Dimension:

Φ89.5 × 69.8 mm(Φ3.52” × 2.75”)

Weight:

280 g (0.57 lbs)
