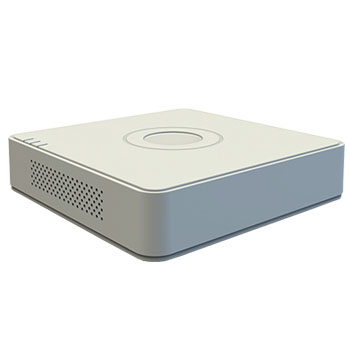

ĐẦU THU 7108HQHI-K1

ĐẦU THU 7108HQHI-K1

3.550.000 đ 4.180.000 đ
Turbo HD DVR
>> Đầu ghi hình HD-TVI 8 kênh Turbo HD 4.0
>> Hỗ trợ chuẩn nén H.265+ tăng gấp 4 LẦN dung lượng lưu trữ.
>> Hỗ trợ HDTVI/ HDCVI/ AHD/ CVBS (HDTVI 3MP, IP 4MP)
>> Hỗ trợ ghi hình 12fps , hỗ trợ 2 camera IP 4MP
>> Ngõ ra HDMI: Full HD 1920 x 1080
>> Hỗ trợ 1 cổng SATA hỗ trợ tối đa 6TB

Danh mục : CAMERA HIK VISION ĐẦU THU DVR

Video/Audio Input
Audio Input:   1-ch
Video Compression:   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input:   8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:   4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input:4 MP, 1080p25, 1080p30, 720p25, 720p30
support CVBS input
Video Input Interface:   BNC (1.0 Vp-p, 75Ω)
Audio Compression:   G.711u
Audio Input Interface:   RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:   1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
HDMI/VGA Output:   1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:   When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate:   Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps;
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:   32 Kbps-6 Mbps
Stream Type:   Video/Video&Audio
Audio Output:   1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:   64kbps
Dual Stream:   Support
Synchronous Playback:   8-ch
Network management
Remote connections:   64
Network protocols:   TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
Hard Disk Driver
Interface Type:   1 SATA Interface
Capacity:   Up to 6 TB capacity for each disk
External Interface
Network Interface:   1; 10M / 100M self-adaptive Ethernet interface
USB Interface:   2 USB 2.0 Interfaces
General
Power Supply:   12V DC
Consumption:   ≤ 12W(without hard disks)
Working Temperature:   -10 oC ~+55 oC (14 oF ~ 131 oF)
Working Humidity:   10% ~ 90%
Chassis:   Mini 1U chassis
Dimensions:   200 × 200 × 45 mm
(7.9 × 7.9 × 1.8 inch)
Weight:   ≤ 1 kg (2.2 lb)
