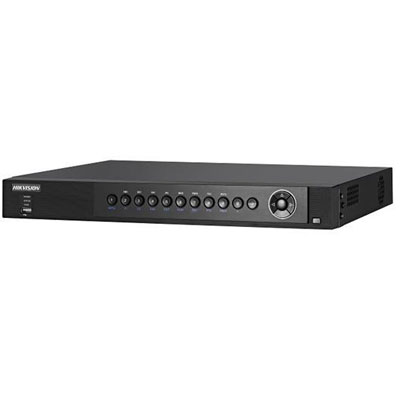

ĐẦU THU 7208HUHI-F2/S
>> H.264+ & Dual-stream video compression
>> Support HD-TVI/analog/AHD/IP camera triple hybrid
>> Support both HD-TVI and analog cameras with
adaptive access
>> Full channel@5MP resolution non real-time recording
>> HDMI output at up to 4K while VGA output at up to 1920×1080P
resolution
>> Long transmission distance over coax cable
>> Support up to 4/8-ch synchronous playback
>> Support HD-TVI/analog/AHD/IP camera triple hybrid
>> Support both HD-TVI and analog cameras with
adaptive access
>> Full channel@5MP resolution non real-time recording
>> HDMI output at up to 4K while VGA output at up to 1920×1080P
resolution
>> Long transmission distance over coax cable
>> Support up to 4/8-ch synchronous playback
Danh mục : CAMERA HIK VISION ĐẦU THU DVR
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 4-ch | |
| Video Compression: | H.264,H.264+ | |
| Analog and HD-TVI video input: | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input |
|
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) | |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 | |
| HDMI/VGA Output: | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
|
| Recording resolution: | Mainstream:5MP/4MP/3Mp/1080p/720p/WD1/4CIF/VGA/CIF Sub-stream:WD1/4CIF/CIF/QVGA/QCIF |
|
| Frame Rate: | Main stream: 5MP@10fps/4MP@15fps/3MP@15fps/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-10 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Playback Resolution: | 5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF | |
| Synchronous Playback: | 8-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 2 SATA Interfaces | |
| Capacity: | Up to 6 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| USB Interface: | 1 USB 2.0 Interface & 1 USB 3.0 Interface | |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex | |
| Alarm Input: | 8-ch | |
| Alarm Output: | 4-ch | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 20W(without hard disks) | |
| Working Temperature: | -10 oC to +55 oC (14 oF to 131 oF) | |
| Working Humidity: | 10% to 90% | |
| Chassis: | 380mm 1U chassis | |
| Dimensions: | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) | |
| Weight: | ≤ 2 kg (4.4 lb) | |
