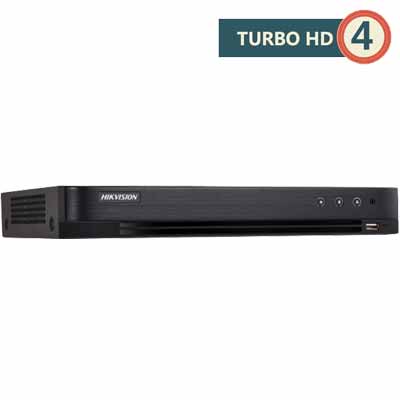

ĐẦU THU 7216HQHI-K2
- Turbo HD DVR
- Đầu ghi hình 2MP/3MP HD-TVI 16 kênh Turbo HD chuẩn H.265/H.265+.
- Hỗ trợ H.265+ tăng gấp 4 LẦN dung lượng lưu trữ.
- Đầu ghi hỗ trợ 5 loại camera
- Cổng màn hình HDMI và cổng VGA :1920X1080p. 4K Output
- Ghi hình trên ổ cứng SATA gắn trong, 2 cổng SATA hỗ trợ tối đa 6TB
Danh mục : CAMERA HIK VISION ĐẦU THU DVR
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1/2 of DS-7208HQHI-K2, and for channel 1/2/3/4 of DS-7216HQHI-K2. Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input |
|
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) | |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 | |
| HDMI/VGA Output: | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
|
| Recording resolution: | When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
|
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 2 SATA Interfaces | |
| Capacity: | Up to 10 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| USB Interface: | 1 USB 2.0 Interface & 1 USB 3.0 Interface | |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 25W(without hard disks) | |
| Working Temperature: | -10 oC to +55 oC (14 oF to 131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) | |
| Weight: | ≤ 2 kg (4.4 lb) | |
