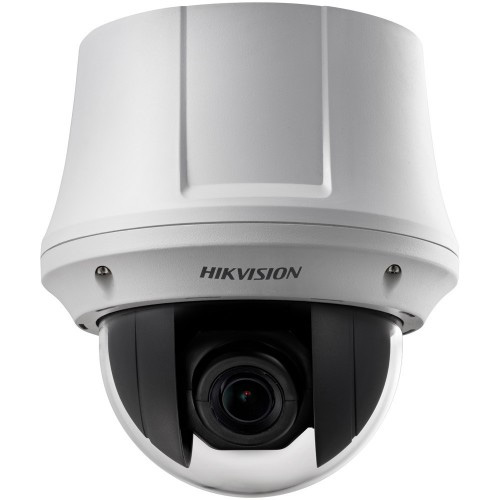

CAMERA TVI 2AE4215T-D3
- Camera speed dome TVI trong nhà 1/2.8" Progressive Scan
- CMOS 2 Megapixel
- Zoom xoay 4 chiều, zoom quang học 15X. Ống kính 4~60mm
- Độ nhạy sáng:Color: 0.05Lux @(F1.6, AGC ON) ; B/W: 0.01Lux @(F1.6, AGC ON)
- Chống ánh sáng ngược cực tốt, công nghệ giảm nhòe kỹ thuật số 3D
- Công nghệ nén hình H.264, họat động tuyệt vời ở ánh sáng thấp.
- Hổ trợ ghi nhớ 256 vị trí định sẵn
- tốc độ quay:
- Pan manual speed: 0.1° to 100°/s
- Pan preset speed: 100°/s
- Tilt manual speed: 0.1° to 80°/s
- Tilt preset speed: 80°/s
- Nhận dạng chuyển động, gởi cảnh báo qua email
- Có khả năng chống sét và sốc điện
- Nhiệt độ môi trường hoạt động -10° C to 50° C
- Nguồn 12 VDC,Max. 14 W
Danh mục : CAMERA HIK VISION CAMERA TVI
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8" Progressive Scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) |
|
| White Balance: | AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| WDR: | ≥ 120 dB | |
| Anti-shake: | On / Off | |
| Shutter Time: | PAL: 1-1/10,000s NTSC: 1-1/10,000s |
|
| Day& Night: | ICR | |
| Digital Zoom: | 16x | |
| Privacy Masking: | 8 privacy masks programmable | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 5 mm to 75 mm, 15× Optical | |
| Zoom Speed: | Approx. 2.4 s (optical, wide to tele) | |
| Angle of View: | Horizontal field of view: 53.8° to 4.0° (wide to tele) Vertical field of view: 31.9° to 2.3° (wide to tele) Diagonal field of view: 60.4° to 4.6°(wide to tele) |
|
| Minimum Working Distance: | 10-1500mm (Wide-Tele) | |
| Aperture Range: | F 1.6 to F 3.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Pan manual speed: 0.1° to 100°/s Pan preset speed: 100°/s |
|
| Tilt Range: | 5°~90° (Auto Flip ) | |
| Tilt Speed: | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
|
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 256 | |
| Patrol: | 10 patrols, up to 32 presets per patrol | |
| Pattern: | 5 patterns, with the total recording time no less than 10 minutes | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None | |
| PTZ Position Display: | ON/OFF | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 2 | |
| Alarm Output: | 1 | |
| Input & Output | ||
|---|---|---|
| Video Output: | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) | |
| UTC function: | UTC protocol (or HIKVISION-C protocol in previous DVR) | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Menu Language: | English | |
| Power Supply: | 12V DC | |
| Power Consumption: | Max. 12 W | |
| Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F) 90% or less |
|
| Protection Level: | TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
| Dimensions: | DS-2AE4215T-D3 (Indoor): Ø 165 mm × 179.5 mm (Ø 6.5" × 7.1") DS-2AE4215T-D3 (In-ceiling): Ø 165 × 168 mm (Ø 6.5" × 6.6") |
|
| Weight (approx.): | 2 kg (4.41 Ib.) | |
| Mount Option: | Various mounting modes optional | |
