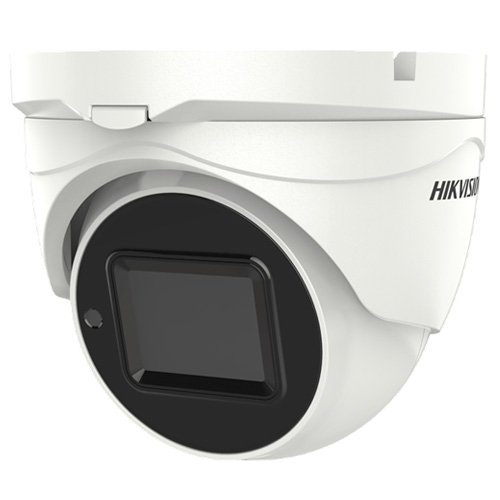

CAMERA TVI 2CE79D3T-IT3ZF
Camera hồng ngoại 2 MP 4 trong 1 (TVI /AHD /CVI /CVBS)
Ultra low light 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
Độ phân giải 1920 × 1080
Ống kính điều zoom 2.7 ~ 13.5mm, tự động lấy nét
Hồng ngoại thông minh 70 m
Hỗ trợ OSD menu, 3D DNR
Chống ngược sáng thực 120 dB true WDR, day/night switch
IP67
IK10 (DS-2CE5AD3T-VPIT3ZF)
Danh mục : CAMERA HIK VISION CAMERA TVI
| Camera | ||
|---|---|---|
| Image Sensor: | 2.0 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1920 (H) × 1080 (V) | |
| Min. Illumination: | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.7 mm to 13.5 mm motorized vari-focal lens | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | PAL: 1080p@25fps NTSC: 1080p@30fps |
|
| Synchronization: | Internal Synchronization | |
| Menu | ||
|---|---|---|
| 3D DNR (Digital Noise Reduction): | Level 1 to 9 | |
| D/N Mode: | Auto/Color/BW (Black and White) | |
| BLC: | Support | |
| AGC: | High/Medium/Low | |
| WDR: | Yes | |
| Language: | English | |
| Function: | Brightness, Sharpness, 3D DNR, Mirror, Smart IR | |
| Interface | ||
|---|---|---|
| Video Out: | 1 HD analog output | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. | |
| Power Consumption: | Max. 7.7 W | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 70 m | |
| Dimension: | 123.87 mm × 110.24 mm × 134.3 mm (4.87" × 4.34" × 5.29") | |
| Weight: | Approx. 600 g (1.32 lb.) | |
